Best Practices for Network Rack & Cabinet Installation: Server Rack Setup and Organization Guide
Network Rack & Cabinet Installation is a critical aspect of building a robust network infrastructure. Proper installation ensures that equipment is organized, accessible, and operates efficiently. This guide provides essential best practices for server rack setup and organization, covering steps for effective installation, cable management, standards compliance, power distribution, cooling methods, and security measures. By following these practices, you can enhance your network’s performance and reliability while minimizing downtime and maintenance costs.
What are the essential steps for proper server rack installation?
Proper server rack installation involves several key steps that ensure the equipment is set up for optimal performance. First, assess your network’s capacity requirements to determine the appropriate rack size and type. Next, choose cabling solutions that meet your network’s needs and accommodate future expansion. Engaging certified professionals for installation can also help ensure that the setup meets industry standards and best practices.
Understanding the foundational elements of a network’s physical layer, such as telecommunication cabinets and cable lines, is crucial for effective design.
Structured Cabling Design: Cabinets, Cable Lines & Trays
A computer network’s basis is a structured cabling system with the main elements as follows: telecommunications cabinets, copper and optical panels, cable lines, and cable trays. The design of structured cabling systems as part of complex building engineering systems—similar to many engineering systems—is usually carried out using computer-aided design programs. In a recent work, we addressed the design of telecommunication cabinets and the equipment housed within them in the Building Information Modeling environment.
Designing structured cabling systems documentation and model by using Building Information Modeling–Literature review, I Kocsis, 2024
Following these steps not only enhances your network’s functionality but also contributes to its longevity. For those seeking expert assistance, Ring and Ping Communications specializes in network cabling and installation, ensuring your setup is both efficient and compliant with industry standards.
How to select the right network rack and cabinet types
Selecting the right network rack and cabinet types is crucial for accommodating your equipment and ensuring efficient airflow. Consider the following factors when making your choice:
By carefully evaluating these factors, you can select a rack or wall mount network rack that meets your specific needs and enhances overall performance.
What tools and materials are needed for the equipment rack setup?
Setting up an equipment rack requires specific tools and materials to ensure a successful installation. Essential items include:
Having the right tools and materials on hand will streamline the installation process and help prevent potential issues.
How can effective cable management improve wall-mounted data cabinet performance?
Effective cable management is vital for maintaining optimal network performance. Properly organized cables improve airflow, enhance accessibility, and reduce downtime caused by tangled or damaged cables. By implementing effective cable management techniques, you can ensure that your network operates smoothly and efficiently.

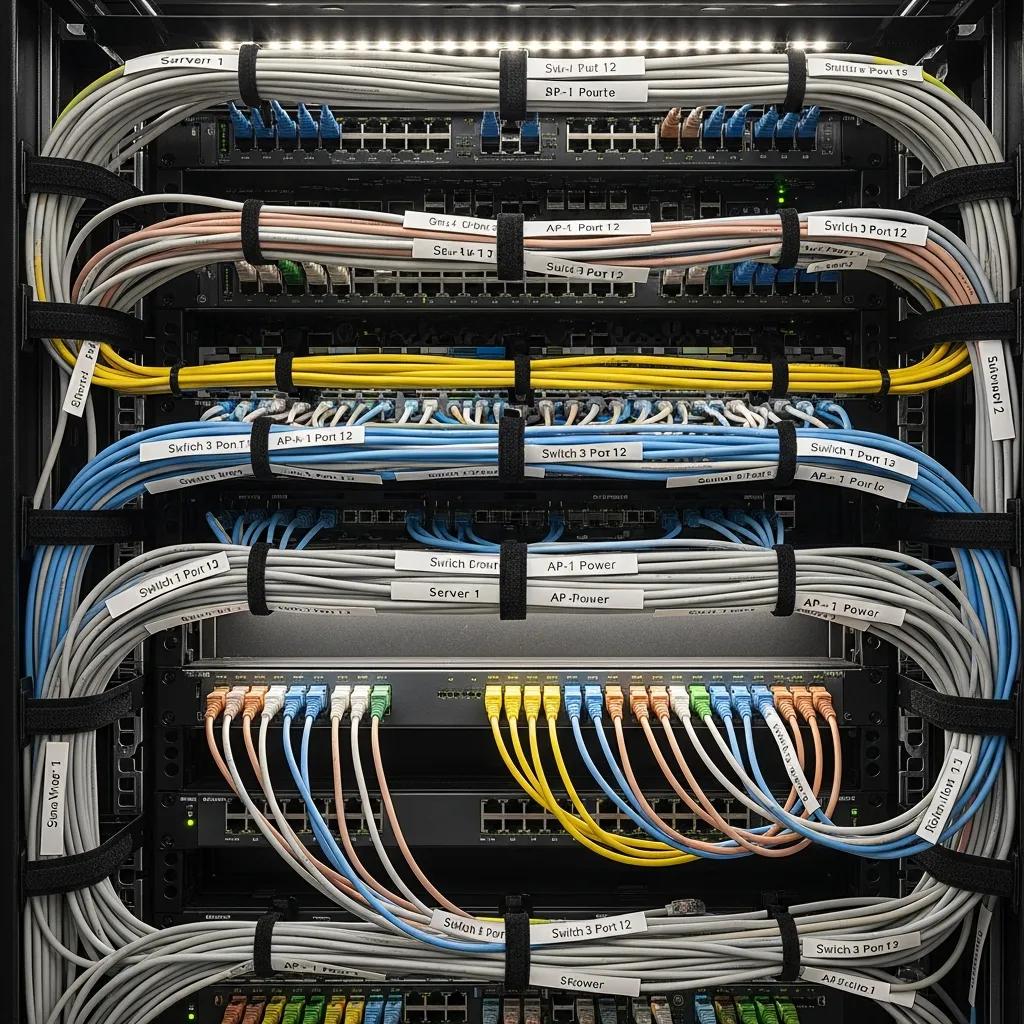

What are the best cable management techniques for network cabinets?
Effective cable management in network cabinets improves airflow, simplifies maintenance, reduces downtime, and protects cable performance. To achieve a clean, scalable, and standards-compliant installation, consider the following best practices:
1. Use Structured Cable Management Hardware
Install vertical and horizontal cable managers, finger ducts, D-rings, and brush panels to guide and protect cables. This ensures proper routing while preventing tangling and strain on connectors.
2. Separate Cable Types
Keep data, fiber, and power cables physically separated to reduce electromagnetic interference (EMI) and accidental damage. Additionally, route high-voltage power cables away from low-voltage data cabling.
3. Maintain Proper Bend Radius
Never exceed the manufacturer’s bend radius specifications—especially for fiber-optic cables. Failure to do so can cause signal loss, performance degradation, or permanent damage.
4. Use Velcro Instead of Zip Ties
Velcro straps allow for easy adjustments and prevent over-tightening. In contrast, zip ties can compress cables and damage internal conductors.
5. Label Everything Clearly
Label both ends of every cable and maintain updated documentation or rack elevation diagrams. As a result, troubleshooting and upgrades become faster and more accurate.
6. Avoid Overcrowding
Do not overfill cable managers or patch panels. Proper spacing maintains airflow and prevents excessive heat buildup inside the cabinet.
7. Implement Logical Routing Paths
Use top-of-rack and bottom-of-rack pathways consistently. For example, dedicate one side of the cabinet for vertical cable runs and the other for power distribution.
8. Plan for Future Growth
Leave spare capacity in patch panels and cable pathways. By planning ahead, you reduce the need for disruptive rework later.
9. Ensure Proper Grounding and Bonding
Follow electrical codes and manufacturer guidelines to ensure safe and compliant installations.
By applying these techniques, organizations can enhance performance, extend equipment lifespan, maintain compliance with TIA/EIA standards, and create a professional, serviceable network environment.
Generic Cabling Systems: Flexible Network Infrastructure & Components
Generic cabling is a highly flexible modular information transmission pipeline within or between buildings that can not only connect voice, data, image, and switching equipment to other information management systems, but also connect this equipment to the outside. It also covers all cables and associated connection components between the network or telecommunication line connection points outside the buildings and the application system equipment. Generic cabling systems can accommodate components of different series and specifications, including transmission mediums, connection hardware (such as distribution frames, connectors, sockets, plugs, adapters, etc.) and electrical protection equipment, etc.
Cabling Engineering, 2022
How to organize Cat6 and fiber optic cabling within racks
Organizing Cat6 and fiber optic cabling within racks requires disciplined installation practices to maintain performance, prevent damage, and support long-term scalability. Because copper and fiber have different physical and performance characteristics, each must be managed according to its specific requirements. Key strategies include: cabling
1. Separation of Cable Types Keep copper (Cat6) and fiber optic cables physically separated to minimize electromagnetic interference (EMI) and prevent accidental damage. Additionally, separate data cables from power cables to reduce noise and maintain signal integrity.
2. Use of Cable Management Hardware: Install horizontal and vertical cable managers, ladder racks, or cable trays to properly support and route cables. This not only prevents sagging and tangling but also improves airflow and simplifies future maintenance.
3. Maintain Proper Bend Radius: Ensure cables are not bent beyond manufacturer-specified bend radius limits. Fiber optic cables are especially sensitive to sharp bends, which can cause signal loss or permanent damage. Similarly, excessive bending of Cat6 cables can degrade performance and affect certification results.
4. Proper Bundling and Securing: Use Velcro straps instead of zip ties to avoid over-compression. In addition, avoid over-tightening bundles, which can distort copper pairs or stress fiber strands.
5. Labeling and Documentation: Clearly label both ends of every cable and maintain updated rack elevation diagrams. As a result, troubleshooting and upgrades can be performed more efficiently.
6. Maintain Airflow and Accessibility: Route cables along designated pathways to avoid blocking ventilation. Proper spacing ensures optimal cooling and easy access to ports and equipment.
By implementing these best practices, organizations can improve network reliability, maintain compliance with TIA/EIA standards, reduce downtime, and extend the lifespan of their infrastructure.
What are the standards and guidelines for rack mounting and equipment housing?
Adhering to established standards and guidelines for rack mounting and equipment housing is essential for ensuring safety, reliability, and regulatory compliance. Specifically, these standards define proper installation practices, load capacities, ventilation requirements, grounding methods, seismic considerations, and equipment dimensions necessary to maintain optimal performance and long-term system stability.
Several widely recognized industry standards govern rack design and installation:
In addition to these standards, best practices recommend:
By complying with these standards and best practices, organizations can enhance equipment longevity, reduce downtime, improve safety, and ensure interoperability across infrastructure components.
Rack Types and Mounting Considerations
1. 2-Post Racks (Relay Racks)
Overview: 2-post racks consist of two vertical mounting rails and are commonly used in telecommunications rooms and for lightweight networking equipment.
Best For:
Advantages:
Limitations:
Mounting Note: Heavy equipment should not be mounted in a 2-post rack unless additional support brackets are used.
2. 4-Post Racks
Overview: 4-post racks have both front and rear mounting rails, providing full equipment support.
Best For:
Advantages:
Mounting Note: Always use manufacturer-approved server rail kits to ensure proper load distribution and safety.
Open-Frame Racks vs. Enclosed Cabinets
Open-Frame Racks
Characteristics:
Best For:
Considerations:
Enclosed Cabinets
Characteristics:
Best For:
Advantages:
Considerations:
Choosing the Right Option
Selecting the correct rack type ensures equipment stability, proper cooling, easier maintenance, and compliance with industry standards.
Rack and Cabinet Comparison Guide
How to ensure compliance with industry safety and grounding standards
Ensuring compliance with safety and grounding standards is critical for protecting personnel, preventing equipment damage, and maintaining regulatory approval. To achieve this, organizations must combine proper design, installation practices, documentation, and ongoing verification.
Follow Recognized Industry Standards
Adhere to applicable national and international standards, including:
Always verify which codes apply based on your country, facility type, and authority having jurisdiction (AHJ).
Implement Proper Grounding and Bonding
Effective grounding reduces the risk of electrical shock and protects equipment from surges and faults.
Best practices include:
Maintain Electrical Safety Controls
Conduct Testing and Verification
Compliance requires verification, not just installation.
5. Maintain Documentation
Keep detailed records of:
Proper documentation makes inspections easier and simplifies troubleshooting.
6. Train Personnel
Ensure installation teams are trained on:
7. Schedule Regular Inspections
Compliance is ongoing. Therefore, implement routine inspections to confirm that:
Final Takeaway
By adhering to NEC, TIA, OSHA, and relevant international standards, while implementing proper grounding, testing, documentation, and training, organizations can ensure a safe, compliant, and resilient infrastructure environment.
How to optimize power distribution and grounding in network racks?
Optimizing power distribution and grounding in network racks is essential for maintaining equipment performance and safety. Proper power management ensures that devices receive adequate power while minimizing the risk of overloads.
What are the best practices for power distribution units?
Implementing best practices for power distribution units (PDUs) can improve your network’s efficiency. Consider the following:
These practices will help ensure that your network operates reliably and efficiently.
How to properly ground a network rack for safety and performance
Proper grounding of network racks is crucial for safety and performance. Key grounding techniques include:
By following these grounding practices, you can enhance the safety and reliability of your network.
What cooling and ventilation methods enhance the reliability of network cabinets?
Effective cooling and ventilation methods are essential for maintaining the reliability of network cabinets. Proper temperature control prevents overheating and extends the lifespan of your equipment.

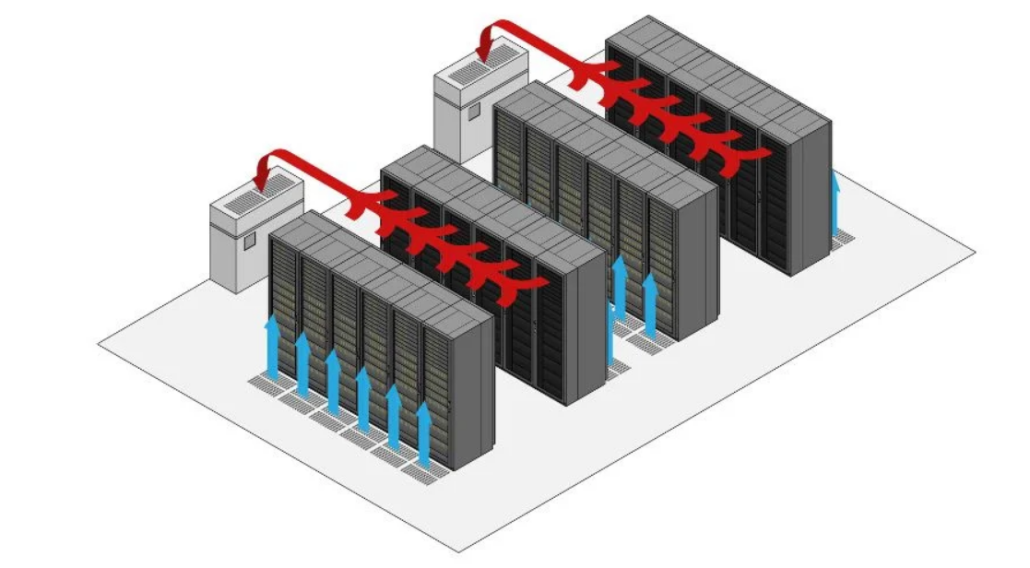

How to implement effective rack cooling solutions
Implementing effective cooling solutions for racks involves several strategies:
These cooling solutions will help maintain a stable environment for your network equipment.
Beyond active cooling, specialized sensing networks are vital for continuous and energy-efficient environmental monitoring within cabinets.
CENet: Energy-Efficient Cabinet Environmental Monitoring
To manage the facilities in the cabinets. We propose a sensing network, called CENet, that is energy-efficient and reliable for cabinet environmental monitoring.
Cenet: A cabinet environmental sensing network, L Chen, 2010
What are common ventilation strategies for server racks?
Common ventilation strategies for server racks include:
By implementing these ventilation strategies, you can enhance the reliability and performance of your network cabinets.
How to secure network racks and cabinets against physical and cyber threats?
Securing network racks and cabinets against physical and cyber threats is essential for protecting sensitive data and equipment. Implementing robust security measures can help mitigate risks and enhance overall network integrity.
What security features should be included in a network cabinet installation?
When installing network cabinets, consider incorporating the following security features:
These security features will help safeguard your network infrastructure against various threats.
How to integrate electrical and network security measures
Integrating electrical and network security measures involves:
By combining these security strategies, you can create a comprehensive approach to protecting your network infrastructure.
Additionally, ensuring the electrical components are up to code is crucial for safety.
Frequently Asked Questions
What are the benefits of using a structured cabling system in network installations?
A structured cabling system provides a standardized approach to network infrastructure, enhancing organization and scalability. It allows for easier troubleshooting and maintenance, as cables are neatly organized and labeled. Additionally, structured cabling supports various data transmission types, including voice, video, and data, making it versatile for different applications. This system also improves airflow and reduces the risk of overheating, ultimately increasing network reliability and performance.
How often should network racks and cabinets be inspected for maintenance?
Regular inspections of network racks and cabinets are essential for maintaining optimal performance and safety. It is recommended to conduct a thorough inspection at least once every six months. During these inspections, check for loose cables, signs of wear, and ensure that cooling systems are functioning properly. Additionally, monitoring for dust accumulation and ensuring proper grounding can prevent potential issues. More frequent checks may be necessary in environments with high traffic or where equipment is heavily utilized.
What are the common mistakes to avoid during network rack installation?
Common mistakes during network rack installation include improper weight distribution, which can lead to instability, and neglecting cable management, which can result in tangled, inaccessible cables. Additionally, failing to adhere to industry standards for grounding and power distribution can create safety hazards. Another mistake is overlooking airflow requirements, which can cause overheating. To avoid these issues, ensure proper planning, follow best practices, and consult with professionals when necessary.
How can I improve the energy efficiency of my network rack setup?
Improving energy efficiency in your network rack setup can be achieved through several strategies. First, implement efficient cooling solutions, such as variable-speed fans that adjust based on temperature. Second, utilize power distribution units (PDUs) with monitoring capabilities to track energy usage and identify inefficiencies. Additionally, consider using energy-efficient equipment and consolidating servers to reduce overall power consumption. Regular maintenance and monitoring can also help optimize energy use and reduce costs.
What role does environmental monitoring play in network cabinet management?
Environmental monitoring is crucial for maintaining optimal conditions within network cabinets. It involves tracking temperature, humidity, and airflow to prevent overheating and equipment failure. By implementing sensors and monitoring systems, you can receive real-time alerts about environmental changes, enabling proactive measures. This not only enhances equipment longevity but also ensures consistent network performance, reducing the risk of downtime and maintenance costs.
How can I ensure my network rack is compliant with local regulations?
To ensure compliance with local regulations, familiarize yourself with the relevant electrical and safety codes applicable to your area. This includes understanding the standards for equipment installation, grounding, and fire safety. Consulting with certified professionals during the installation process can help ensure compliance with these regulations. Additionally, regular audits and updates to your network infrastructure can help maintain compliance as regulations evolve.
Conclusion
Implementing best practices for network rack and cabinet installation significantly enhances the performance, reliability, and longevity of your network infrastructure. By ensuring proper organization, effective cable management, and adherence to safety standards, you can minimize downtime and maintenance costs. For expert assistance tailored to your specific needs, consider contacting professionals who specialize in network cabling and installation. Explore our resources to optimize your network setup today.
